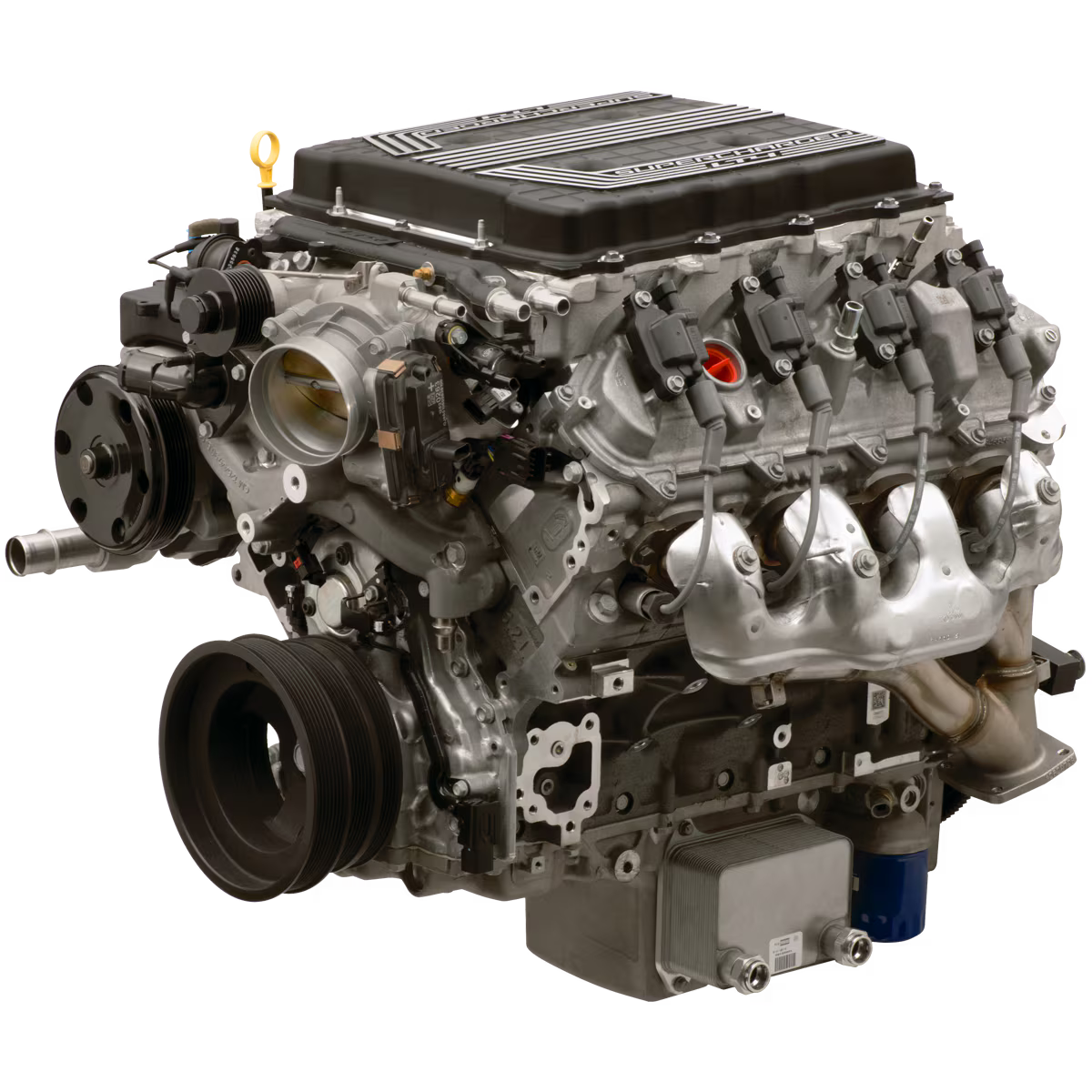

LT Engines The next generation of performance engines

LT4 numbers are approximate, so we still have to estimate peak cylinder pressure, but we can get a realistic force range at the rod journal for that specific 6.2L. This kind of information helps us to determine the test procedures and additives that can withstand these kinds of forces.

1. LT4 hard numbers

From GM and aftermarket specs for the LT4:

Displacement: 6.2 L (376 in³)
Configuration: 90° V‑8, supercharged
Bore: 4.065 in
Stroke: 3.622 in
Compression ratio: 10.0:1
Boost: a bit over 9 psi in OE trim (some references list higher for crate/aftermarket calibrations)

Piston crown area for a 4.065 in bore:

A = π \cdot {(\frac{4.065}{2})}^{2} \approx 12.99 {in}^{2}

2. Reasonable peak pressure for an LT4

A boosted, direct‑injected gasoline engine like the LT4 will see peak firing pressures substantially above a comparable naturally aspirated engine’s ~1000–1500 psi; with ~10:1 compression and ~9–10 psi boost, peak pressures in the 1500–2000+ psi band are realistic at high load.

Since GM doesn’t publish in‑cylinder traces, the best we can do is bracket it:

Conservative high-load estimate: 1500 psi
Aggressive/high estimate: 2000 psi

(If you assume more boost or a hot tune, you’d be pushing toward or above the high side of that range.)

3. Force on piston, rod, and crankpin

Using $F = P \cdot A$ on the LT4 piston:

At 1500 psi:
- $F_{piston} \approx 1500 \times 12.99 \approx 19,500 lbf$
At 2000 psi:
- $F_{piston} \approx 2000 \times 12.99 \approx 26,000 lbf$

Combustion force at the critical few crank angles after TDC is transmitted almost entirely through the connecting rod to the crankpin, separating into:

A large radial load on the rod journal (what you’re interested in)
A smaller tangential component that produces torque
A side thrust component into the cylinder wall

EPI’s force breakdown for a 4.00 in bore small‑block shows that, near peak combustion loading, essentially the full gas force (on the order of 21,000–22,000 lbf in their example) appears as load at the crankpin, with only a modest lateral component. The LT4’s bore is nearly identical, so the same physics applies.

4. What that means for an LT4

So for a stock‑ish Chevrolet LT4 under full‑load combustion:

Per-firing, peak gas force on each piston is roughly in the 20,000–26,000 lbf range, depending on the actual peak cylinder pressure at that operating point.
The load transmitted through the connecting rod to the rod journal on the crankshaft at the most critical crank angles is essentially that same 20,000–26,000 lbf, acting primarily as a radial bearing load on the crankpin.

At the LT4 rod journal and big-end, you’re looking at total loads on the order of a few tens of thousands of pounds, because combustion and inertia forces add and subtract over the cycle. We can bracket realistic numbers using LT4 geometry and EPI’s force analysis as a template.

1. LT4 geometry and speed

Key LT4 data:

Bore: 4.065 in → piston area ≈ 12.99 in²
Stroke: 3.622 in → crank radius $r = 1.811$ in
Rod length: 6.125 in (LT1/LT4 share this length) → rod/stroke ≈ 1.69
Redline: 6500 rpm

These are very similar to the 4.00 in bore / ~3.15 in stroke single-plane V8 used in EPI’s force-on-reciprocating-parts worked example, which has an R/S of 1.687.

2. Gas force at peak firing (recap)

Assuming a realistic full-load peak cylinder pressure of 1500–2000 psi for the boosted, DI LT4:

1500 psi: $F_{gas} \approx 1500 \times 12.99 \approx 19,500$ lbf on the piston
2000 psi: $F_{gas} \approx 26,000$ lbf on the piston

At the critical crank angles just after TDC firing, nearly all of that goes through the rod into the crankpin as radial load, with a smaller lateral component and a tangential component that creates torque.

3. How inertia modifies rod and journal load

The net force on the rod journal at any instant is:

F_{rod, net} = F_{gas (resolved onto rod)} \pm F_{inertia}

Around TDC firing, gas and inertia forces oppose each other (inertia is trying to keep the piston moving, gas is pushing it the other way), so inertia reduces net compressive load on the rod.
Around TDC overlap and BDC, you can have tension in the rod from inertia, adding to or exceeding gas forces depending on rpm and load.

EPI’s example: with about a 4.0 in bore engine at 3000 rpm, they show a peak combustion load of ~21,866 lbf at the crankpin, and an upward inertia load of 4086 lbf at that instant, reducing net rod load to ~18,000 lbf. That’s with a 475 g reciprocating mass and R/S ≈ 1.687, very close to an LT geometry.

At LT4 speeds (up to 6500 rpm), inertia forces scale with $ω^{2}$ , so they grow very quickly. Even without exact bobweight for the LT4, it’s reasonable to say:

At moderate rpm (e.g., 3000–4000), gas force dominates at peak firing; inertia trims net rod/journal load by a few thousand pounds, similar to the ~4 k lbf reduction in the EPI example.
Near redline (6000–6500 rpm) under heavy load, inertia loads become large enough that, at some crank angles, total rod/journal loads are higher than “gas only,” and at light load you can see very high tensile loads on the rod from inertia alone.

4. What the LT4’s rod journal and big-end “see”

Putting this together for a stockish LT4:

Peak compressive load at rod journal during firing:
Roughly the same 20,000–26,000 lbf range as the gas-only force, with inertia subtracting a few thousand pounds at the critical firing angle at mid rpm and a larger fraction at high rpm.
EPI’s 4.0 in example gives a feel: 21,866 lbf gas at the crankpin, reduced to ~18,000 lbf net at that instant due to 4086 lbf inertia.
Peak tensile/compressive loads over the whole cycle:
When you add high rpm inertia, maximum absolute rod loads (compression or tension) can easily exceed the gas-only numbers. For a forged LT4 rotating assembly designed for 6500 rpm and 650 lb‑ft, it’s entirely plausible that worst-case rod journal/big-end loads are on the order of 25,000–30,000+ lbf in either direction at certain crank angles and speeds.
Big-end bearing loading:
The big-end bearings see this as a highly time-varying radial load on the crankpin, cycling between high-compression regions (firing) and high-tension or reduced-load regions (overlap, intake, and BDC), with magnitude governed by the vector sum of gas and inertia forces. Bearing design (diameter, width, oil film, clearance) is chosen specifically to support these tens-of-kips dynamic loads over the engine’s life.
